Longarm Quilting on Frame
BERNINA Longarm Quilting Machines on Frame
Looking for a professional-grade longarm quilting machine? At Flash Sew & Quilt, we proudly offer the BERNINA Q Series—available in 16", 20", or 24" throat space. Whether you're a passionate hobbyist or professional quilter, these machines deliver smooth stitching, digital thread tension control, and ergonomic design on a sturdy quilting frame. Explore the Q 16 PLUS, Q 20, and Q 24 to experience Swiss precision and comfort in every stitch.
- 16", 20" or 24" throat space
- BERNINA S,C,L PRO Frame & Studio Frame
- Stitch Regulation for perfect stitches
- Unique digital thread tension adjustment
- Ergonomic operation, fully from the front
BERNINA Longarm Quilting Machines on Frame
From the very first stitch, you will appreciate the thought behind every detail
The BERNINA Q 16 PLUS, Q 20 and Q 24 are longarm quilting machines and only differ in the length of the throat space.
- Throat space of Q 24: 24 inches
- Throat space of Q 20: 20 inches
- Throat space of Q 16 PLUS: 16 inches
For the Q 24 and Q 20, BERNINA offers the quilting frame in three sizes: "Small PRO", "Classic PRO" and "Large PRO". The BERNINA Studio Frame is suitable for use with the Q 16 PLUS and Q 20.
Hand-guided quilting made easy
- Precise regulated stitches (in BSR mode)
- Indicates the exact needle entry point
- Simple customization via touch screen
Thanks to the integrated BERNINA Longarm Stitch Regulator you achieve perfect stitches at equal-length no matter which speed you move the fabric. A manual mode with no stitch regulation is also available.
Fast threading and winding
- Threading becomes a child's play
- Enjoy comfort all the way
- Wind your own bobbin in no time
The well-positioned spool holders and forward threading path are easy to reach and simple to follow. The on-board bobbin winder makes it convenient to wind your own bobbins.
Unique user interface
- Simple-to-navigate touch screen
- Individual settings for full comfort
- Built-in tutorials offer full assistance
Totally customizable, the user interface includes useful functions, such as five user profiles, a stitch counter, and built-in tutorials regarding maintenance.
Comfortable quilting has priority
- 8-way, fully-adjustable handles
- Quilt in your preferred position
- Adapt position to any quilting method
The well-positioned spool holders and forward threading path are easy to reach and simple to follow. The on-board bobbin winder makes it convenient to wind your own bobbins.
Beautiful stitches every time
- Achieve precise stitching results
- Stitches are always consistent
- Perfection is the new standard
With high-speed precision stitching up to 2.200 stitches per minute, you will complete more quilts quicker than ever.
Ergonomics matter
- Full operation from the front
- Adjustable frame height
- Easy manual needle positioning
The machine can be fully operated from the front. Adjust the frame height to your personal preference. Dual handwheels (front and back) allow for easy manual needle positioning.
Working with bright lights
- Naturally illuminated working area
- Sufficient lighting even in darker rooms
- Perfect illumination of the quilting area
50 bright LED lights along the throat space of the machine and above the needle illuminate the quilt for enhanced visibility.

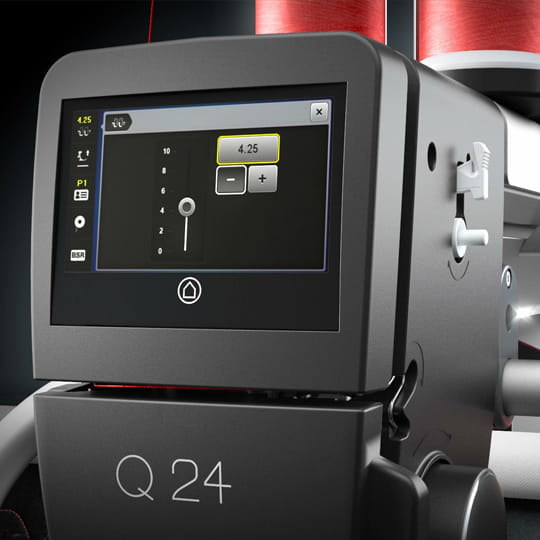

Unique thread tension control
- Adjust thread tension digitally
- Tension release for threading ease
- No external tension assembly required
The exclusive tension system features numeric tension settings making it very easy to use a wide range of thread types with success, no external tension assembly required.
It's your choice
- How much space you need
- Which accessory you want to add
- Build your individual long arm machine
Choose between 16 Inch (Q 16 PLUS), 20 Inch (Q 20) or 24 Inch (Q 24) throat space. Our Quilt Frames are available in different sizes.
Frame Options
Large PRO  |
Classic PRO  |
Small PRO  |
Studio Frame (5 foot)  |
Studio Frame (10 foot)  |
Hoop Frame  |
|
|---|---|---|---|---|---|---|
| BERNINA Q 24 | ✔️ | ✔️ | ✔️ | – | – | – |
| BERNINA Q 20 | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| BERNINA Q 16 PLUS | – | – | – | ✔️ | ✔️ | ✔️ |
| Size (length × depth) | 12'11” × 3'11” | 11'11” × 3'11” | 8'10” × 3'11” | 5'10” x 3'3” | 10'11” x 3'3” | 5’10” x 3’3” |
| Maximum quilt size | ~120” | ~108” | ~71” | ~42.5” | ~104” | Not limited |
| Leaders | 132” | 120” | 83” | 52” | 114” | – |
| Adjustable frame height | 35–47” | 35–47” | 35–47” | 35–44” | 35–44” | 32–44” |
| Number of legs | 6 | 6 | 4 | 4 | 6 | 4 |
| Hydraulic Lift | optional | optional | not available | not available | not available | not available |
| Further information | Learn more | Learn more | Learn more | Learn more | Learn more | Learn more |
