GO! Carpenter's Wheel 18" Finished Die
Item #55531
Making this classic block has never been faster or easier. The GO! Carpenter's Wheel 18" Finished Die cuts all the pieces for a single block in just one pass through the cutter, and specialized dog-ears make sure every piece fits together just right as you build the block.

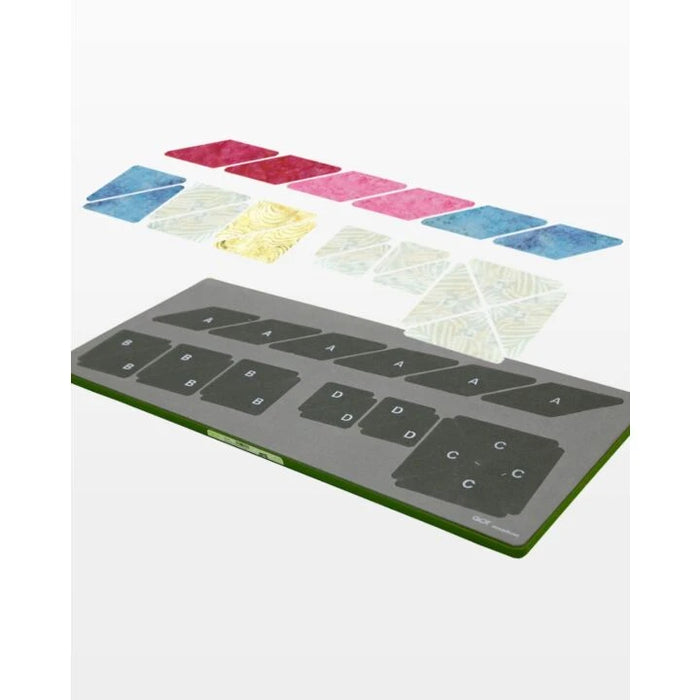

How to Die Cut 5-Color Carpenter's Wheel Blocks
For best cutting results, position fabric on the lengthwise grain (straight of grain) as it goes under the roller. Tip: This die is specially designed to cut one complete 5-color 18" block in one pass through the cutter.
-
Fabric Color 1 – 16 A shapes: Cut three 23⅛" × 2⅞" rectangles. Place right side up over shapes A to cut. (There will be two extra shapes.)
-
Fabric Color 2 – 8 A shapes: Cut one 23⅛" × 2⅞" rectangle. Place right side up over shapes A to cut. Cut two extra shapes by placing a 9⅛" × 2⅞" rectangle over two A shapes.
-
Fabric Color 3:
-
8 A shapes: Cut one 23⅛" × 2⅞" rectangle. Place right side up over shapes A to cut. Cut two extra shapes by placing a 9⅛" × 2⅞" rectangle over two A shapes.
-
8 B shapes: Cut one 11¼" × 4" rectangle. Place right side up over shapes B to cut. Cut two extra shapes by placing one 4" square over two B shapes.
-
Fabric Color 4 – 16 B shapes: Cut three 11¼" × 4" rectangles. Place right side up over shapes B to cut. (There will be two extra shapes.)
-
Fabric Color 5:
-
8 B shapes: Cut one 11¼" × 4" rectangle. Place right side up over shapes B to cut. Cut two extra shapes by placing one 4" square over two B shapes.
-
8 C shapes: Cut two 5½" squares. Place right side up over shapes C to cut.
-
16 D shapes: Cut four 6⅛" × 3¼" rectangles. Place right side up over shapes D to cut.
Why Quilters Love the GO! Carpenter's Wheel Die
- Block on Board® (BOB®) die – specially designed to cut one 5-color, 18" block in one pass through the cutter.
- No templates and no special rulers. Includes 20 shapes that are time-consuming to cut by hand.
- Specialized dog-ears and ¼" seam allowances for easy alignment and piecing.
- Screen-printed letters on the die make piecing and organizing shapes easier.
- Free pattern downloads and step-by-step block assembly instructions available to get you started.
- Fat Quarter–friendly.
- Compatible with Electric Quilt® (EQ) software – design your own Carpenter's Wheel layouts from the EQ block library, then cut your fabric.
Recommended Fabric Layers
| Fabric |
GO! Me |
GO! |
GO! Bolt |
GO! Big |
| Cotton, batiks, satin, silk |
6 |
6 |
6 |
6 |
| Fleece, flannel, wool, batting, felt |
2 |
2 |
2 |
2 |
| Denim, leather |
1 |
1 |
1 |
1 |
AccuQuilt Cutting Benefits
- Cut much more fabric in far less time.
- Get accurate cuts every time – no slipping rulers or cutting mistakes.

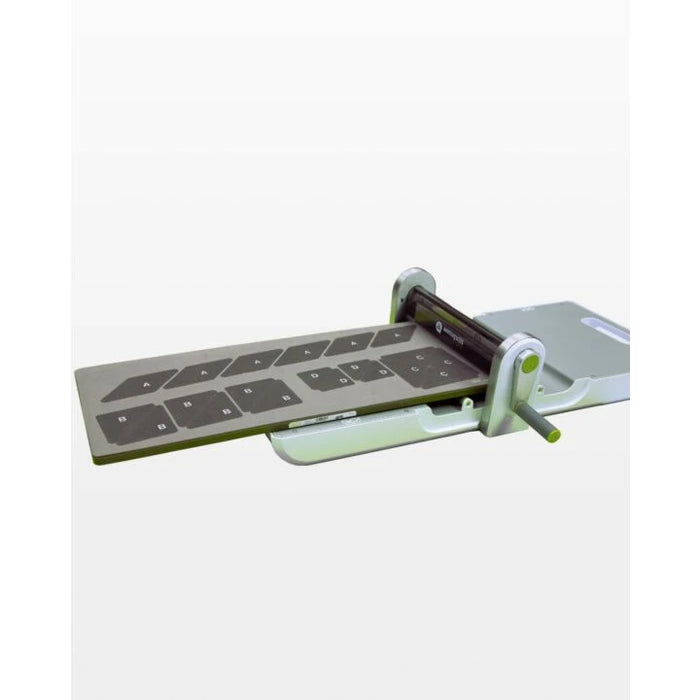

- Easiest to use – place die on cutter, then fabric and cutting mat on top.

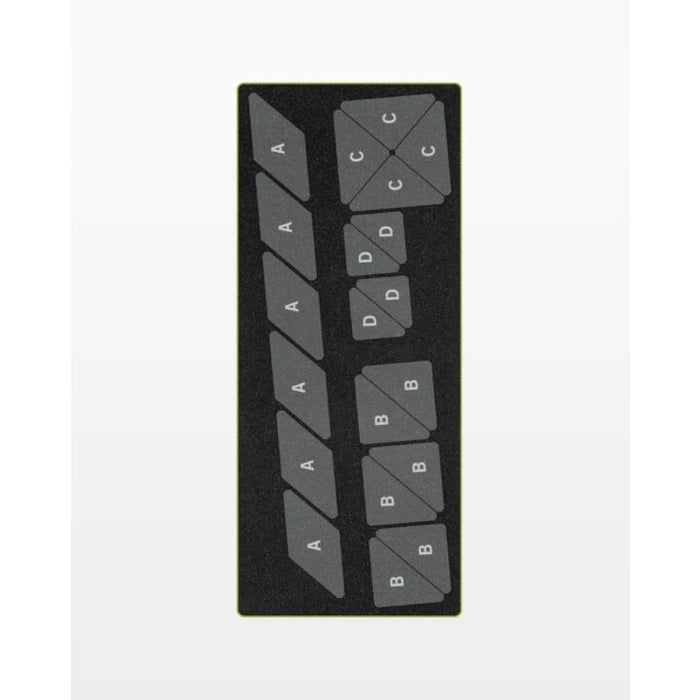

- Save fabric with Two-Tone Foam by placing fabric only over the shape you want to cut.
- Safe to use – blades are embedded in the die, away from your fingers.
Die Tips
- With some fabrics, a thread or two may remain where die blades meet – simply snip with scissors.
- Blades on some dies are positioned at an angle. Align fabric to the edge of the shape, not the edge of the die board.
- Use good quality fabric to reduce stretch.
- Always test cut one shape before cutting many to confirm fabric orientation.
- Clean lint and threads with an adhesive roller or die pick. Blades never need sharpening.
Dimensions & Specifications
| Item |
Details |
| Product Name |
GO! Carpenter's Wheel 18" Finished Die |
| Item Number |
55531 |
| Cut Size |
Not listed due to non-standard shapes |
| Finished Size |
18" Finished Block (45.7 cm) |
| Die Board Size |
10" × 24" (25.4 cm × 61 cm) |
| Cutting Mat |
GO! Cutting Mat 10" × 24" (25.4 cm × 61 cm) |
| Compatible Cutters |
GO! Me, GO!, GO! Bolt, GO! Big |
